Precision milling and drilling machine FEHLMANN PICOMAX 56 L TOP

The precision milling and drilling machine PICOMAX 56 L TOP (Touch Or ProgramTM) features a completely new control concept that combines both 3-axis CNC machining and manual control with a drilling arm and handwheels.

Specially designed for fast, reliable and efficient milling, drilling and threading tasks on individual parts without any time-consuming programming. After a very short initial training period, operators will be able to operate the PICOMAX 56 L TOP effectively even without prior programming knowledge.

Brand

FEHLMANN

Add to wishlist
SKU: FEHLMANN PICOMAX 56L TOP-en Categories: Drilling machines, Milling machines Tag: FEHLMANN
  • Description
  • Reviews (0)
  • About FEHLMANN
Description

Machine features

TOP machine for manual and CNC operations – even more flexible and versatile in the L version

Modernization of traditional machining

TOP machine for manual and CNC operations with the innovative FEHLMANN control concept: convenient, fast and economical.

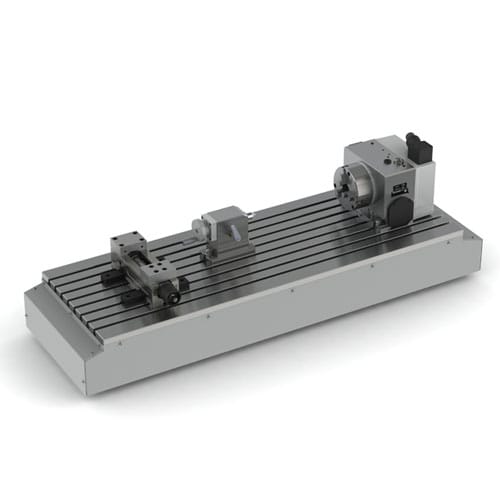

Larger clamping surface

The L version has an increased X-travel of 800 mm compared to the standard model and a clamping surface of 1400 x 480 mm. Extra-long workpieces can be machined in one step without changing position. More options are available for 4-axis machining with a dividing block. Thanks to the increased distance between the dividing unit and the tailstock, longer workpieces can also be machined efficiently.

Even the basic model of this FEHLMANN “Swiss-made” machine offers the features of a modern, high-performance milling machine, such as: fully digital Heidenhain TNC 620 control, a cooled, high-torque Fehlmann motor spindle for universal milling up to 12,000 rpm, interpolated Z/S thread cutting, 3D milling, boring, etc.

In addition, the PICOMAX 56 L TOP can be upgraded with various functional machine options, such as the FEHLMANN dividing block for 4-axis operation, automatic tool change with 20 or 30 pockets, etc.

Features and highlights

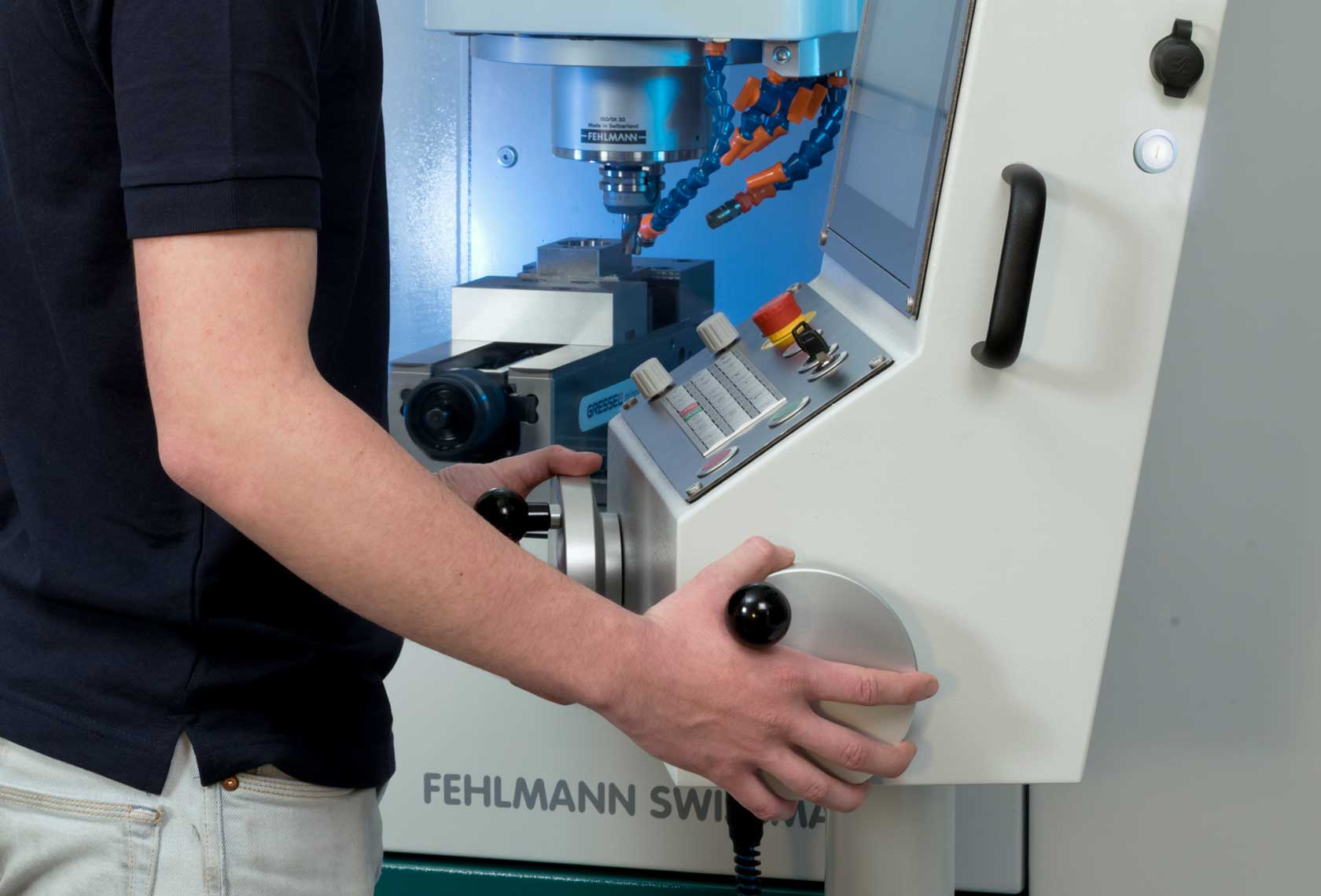

Manual operation

  • Simple machining tasks are carried out manually using handwheels!
  • Trained operators can operate the machine even without programming knowledge

TOP functions for manual operation

  • Quick, easy and proven.
  • Milling, drilling and threading with TOP functions
  • Innovative control concept that combines both 3-axis CNC machining and manual operation using a drilling lever and handwheels
  • Let our experts advise you!

CNC operation

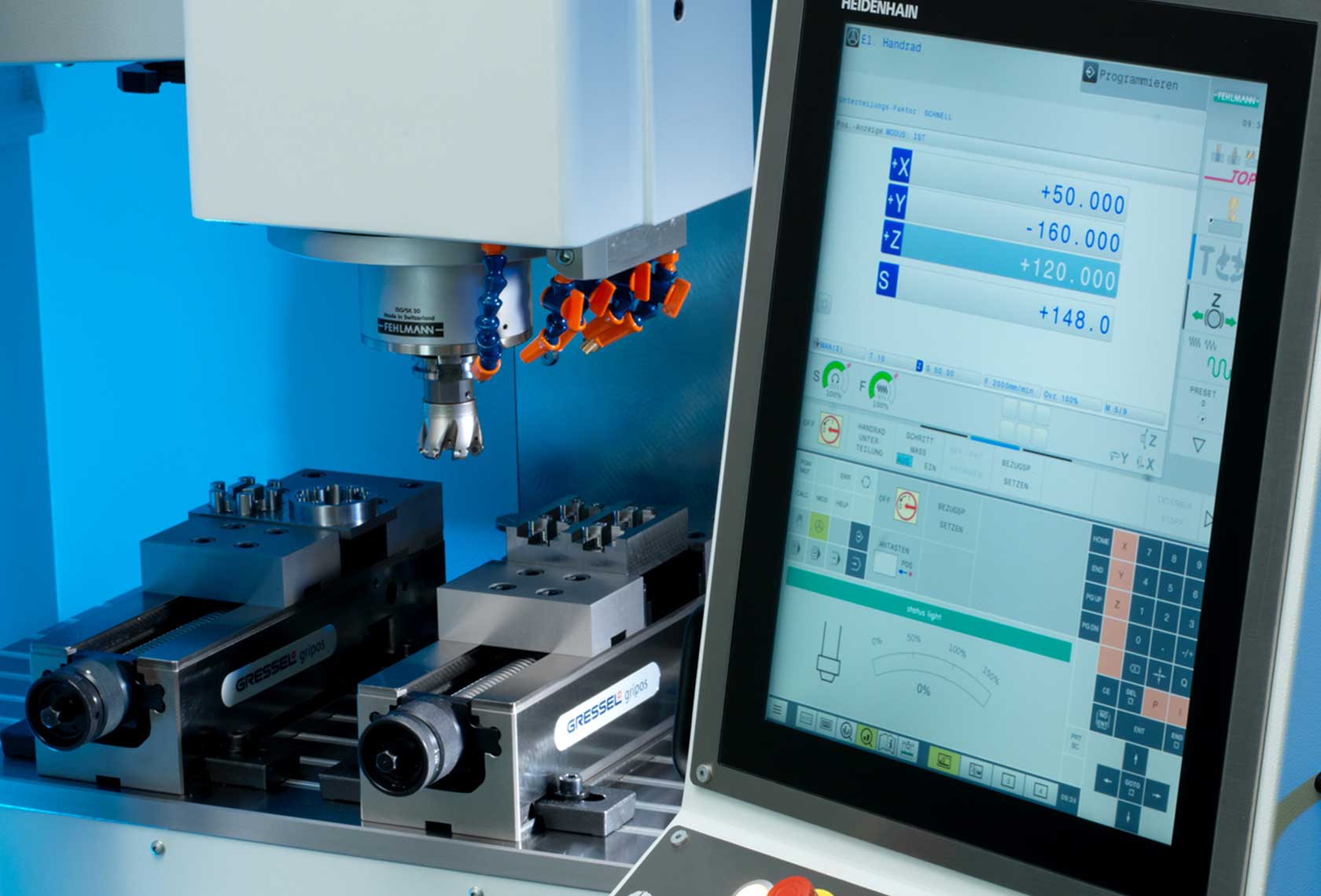

  • Modern Heidenhain TNC 620 CNC with multi-sensor control
  • Thanks to Heidenhain continuous path control and graphically supported cycles, even complex parts can be programmed easily and economically

Tool change

  • The intelligent arrangement of the working elements ensures convenient and fast manual tool changes
  • The machine is optionally available with an automatic tool change for 20 or 30 tools

Ergonomic and versatile

  • All operating elements are ergonomically arranged
  • The large clamping surface reduces setup times (several clamping options possible at the same time)
  • Working area at an optimal working height
  • Perfect access to the working area

Processing efficiency

  • Cooled motor spindle up to 12,000 rpm
  • Torque 60 Nm
  • Milling and drilling in steel up to Ø 40 mm

4-axis CNC

  • Also available with a block CNC division
  • Large table surface allows for tailstock operation

Accuracy / Quality

  • Direct path measuring systems
  • Quality assurance using modern equipment
  • In-house development, production and assembly in Fehlmann/Switzerland

Parts Handling

  • Manual and CNC for economical milling and drilling of small batches and individual parts
  • FEHLMANN TOP functions, a completely innovative control concept that allows the machine to be used for both 3-axis CNC machining and manual operation – via drilling lever and handwheel
  • Extra-long workpieces can be machined in one step without changing position
  • Several fixtures can be mounted on the 1400 x 480 mm clamping surface at the same time.
  • 4-axis machining of long workpieces
    Efficient and economical machining of complex parts with the
  • Heidenhain TNC 620 and graphically supported cycles
  • Space-saving and clear layout thanks to ergonomic and compact design

Options

Single-batch to small-batch machining

  • Precision part manufacturing
  • Prototype manufacturing
  • Tool and workpiece manufacturing
  • Laboratory
    Student training

Ideal for single-batch and small-batch manufacturing in tool and mold manufacturing, test and prototype manufacturing, laboratories, and student workshops (introduction to CNC).

Milling, drilling, boring, and threading can be performed with minimal programming and setup.

Technical specifications

Travel distances
Xmm800
Ymm400
Zmm400
Machining area
Clamping surface L x Wmm1400 x 480
Distance table to spindle nosemm120 – 520
Work spindle
Speed / power S6 (40%ED)rpm50 – 12,000 / 9.5 kw
Tool changer (optional)
Magazine pockets 20 or 30
Additional details
ControlsHeidenhainTNC 620
Space requirement (W/D/H)m2.5/ 1.9/ 2.5
Weight without tool changerkg3750
Weight with tool changer (20 pockets)kg4000

Subject to technical modifications.
