Precision Optics SR 80 OptoTech
Precision Optics - OptoTech SR 80
OptoTech

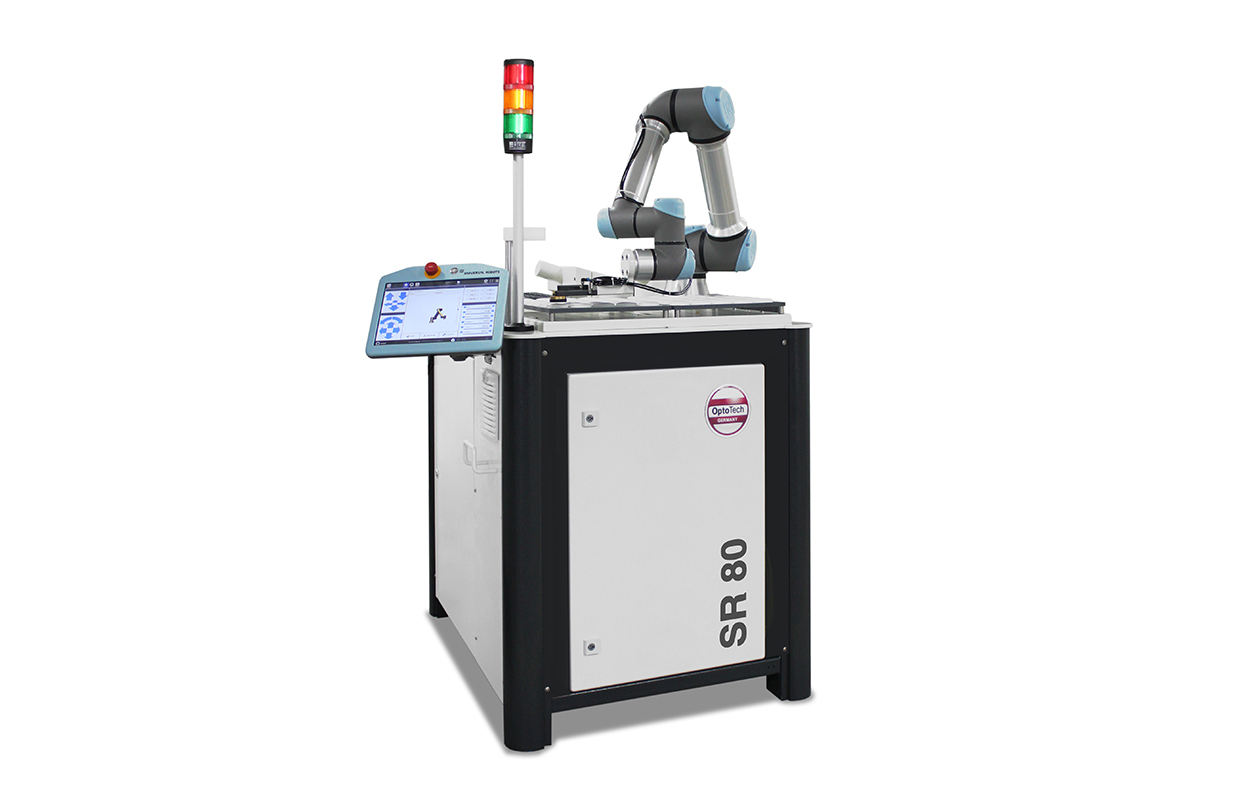

Precision Optics – OptoTech SR 80

The SR 80 allows automatic loading and unloading of a wide range of machines. It can be used for single surfaces (standard lens diameter up to Ø130mm) as well as for cementing pieces.

OptoTech
Додати в обране
Артикул: Precision Optics OptoTech SR 80 Категорія: Позначки: , ,
Опис

Highlights

  • Operation via a detachable 12“ touch pad or simple teaching by directing the robot.
  • Integration of the SR 80 into the automatic process of the machine via interface to the machine control (suitable for Siemens or Beckhoff controls).
  • An integrated force / torque sensor even enables the insertion of cementing pieces in HD receptions with the robot.
  • A simple lens turning station allows both sides of the lens to be processed.
  • The collaborative robot is equipped with state-of-the-art safety functions to ensure safest operation.
  • Cleaning and drying of the lens & cementing piece in an integrated washing station with water (internal water supply including filter unit) and air, a rotating cotton cloth sponge or an ultrasonic dip tank (all available as an option)
  • The SR 80 is loaded via max. 4 DIN flat pallets (200x300mm) or via an own pallet system. The pallets can optionally be equipped with loose lenses or blocked lenses.

Performance Data

  • max. 4 DIN flat pallets (200x300mm)
  • lens diameter up to Ø130mm
Відгуки (0)

Відгуки

Відгуків немає, поки що.

Будьте першим, хто залишив відгук на “Precision Optics – OptoTech SR 80”

Ваша e-mail адреса не оприлюднюватиметься. Обов’язкові поля позначені *

Про OptoTech

OptoTech

OptoTech presently offers the most comprehensive range of machinery and processes for processing precision optics worldwide. We supply optics processing centers for grinding, polishing and centering/edging, correction polishing machines for achieving the highest possible quality, measuring technology, as well as alignment and joining technologies.

Whether you need a machine for round optics, plano optics, aspherics, or for the production of cylinders or the generation of freeform surfaces - OptoTech always provides the whole process technology.

Welcome to OptoTech

Since the company was founded, the OptoTech name has represented innovation and technological advancement in optical manufacturing equipment. The company was founded in 1985 by Roland Mandler. From the first design concepts and the construction of conventional high speed machines, to the wide range of state of the art CNC generators and polishers offered today, many of our innovations have helped shape the market.

OptoTech has the broadest range of machinery and process technology available on the world market for both precision and ophthalmic optics. Pre-processing, generating, polishing, measuring and post-processing – we always offer a complete line of equipment for all your manufacturing needs.

Many ideas and concepts, which once originated in the minds of our development team, have now become standard in optical production. This includes such things as:

Precision optics:

Polishing with oscillation around the radius center point with optimally calculated tools
Integrated correction of the polishing tools using cup-type grinding tools
A-FJP® correction technology for fine correction of polished lenses up to λ/20
Innovative A-WPT (Advanced Wheel Polishing Technology)

Ophthalmic optics:

Individual progressive lenses in consideration of cosmetic and geometric aspects
Alloy-free production concept smartLAB superstore
Fully automated simultaneous processing of two freeform lenses on our new Twin-A machines

Additionally OptoTech supplies all tools and consumables needed for optical production. The adaptation of standard tools to meet the customer’s particular applications is always possible. Even the complete production process for an optical component can be supplied, if desired.

OptoTech has consultants and service personnel in Europe, USA, China, Russia, India and Japan. As a result, start-up of the machinery, for example, can generally be done immediately after delivery.

One stop shopping combined with prompt and professional service and a look for the future. Since more than 30 years!
