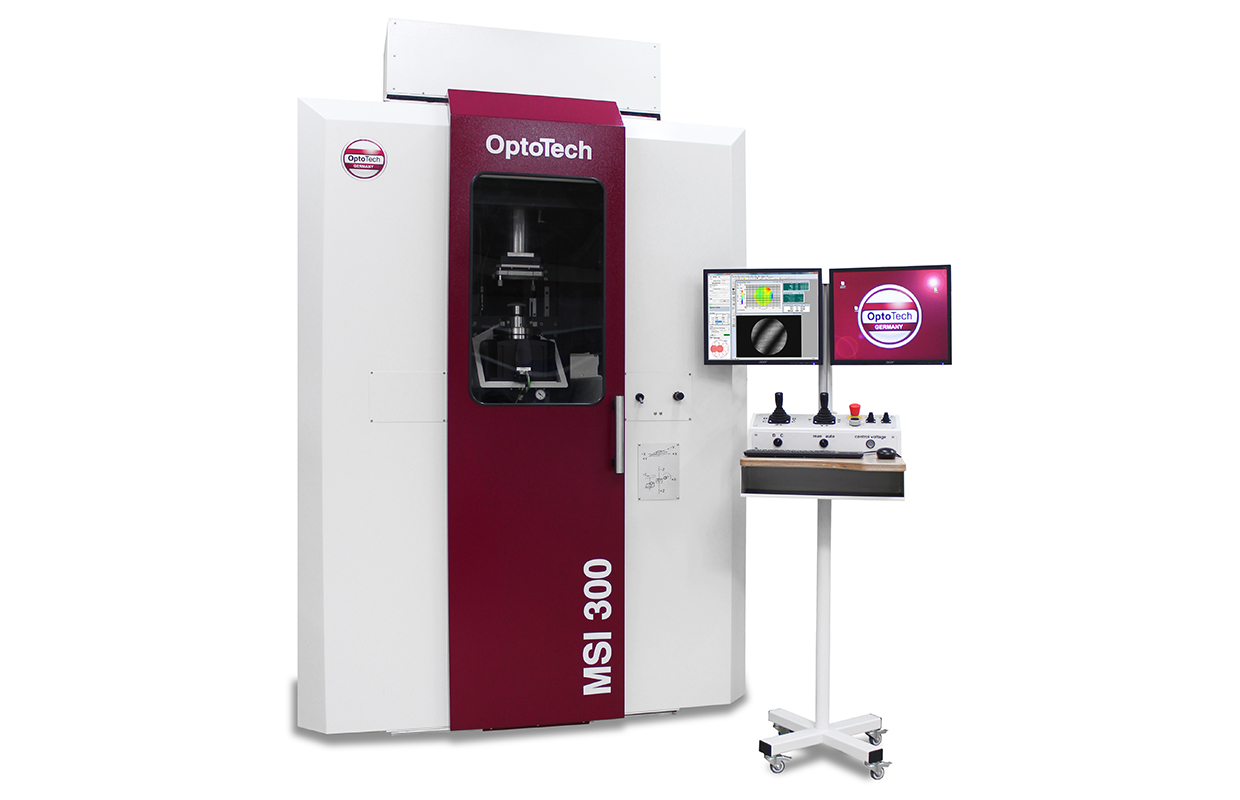

Metrology OptoTech – MSI 300 (Multifunctional Stitching Interferometer)

For measuring high aperture spheres up to diameter 300mm and optional measuring of plano optics up to 300mm

OptoTech
Додати в обране
Артикул: Ophthalmic OptoTech MSI 300-en Категорії: , Позначок: , , , ,
Опис

Highlights

  • The new multifunctional Stitching Interferometer MSI 300 was especially designed for testing high aperture spheres up to diameter 300 mm. Optional measuring of plano optics up to 300mm
  • Rigid granite base and passive air bearings
  • High precision radii slide in Z-Axis adjustment
  • Interferometer module in inverse design with X/Y-Axis cross slide
  • High resolution swivel axis (B-Axis) for positioning of high aperture spheres in the optical path
  • Direct-driven rotation axis (C-Axis) to rotate high aperture spheres and optional plano surfaces in the optical path
  • Standard workpiece holders HD-40 (others available as an option)
  • OptoTech Inspect Mini EL-F Digital 4“ Fizeau-Interferometer module (others on request)
  • Compact design with integrated PC working place
  • Handling: Conventional (manual) or with automatic axe control by using μStitch MSI-Software



Option:

  • Various Fizeau Reference Spheres
  • Table for plano optics measurement

Performance Data

  • Working range diameter: up to 300 mm
  • Working range X-Axis: ± 150 mm
  • Working range Y-Axis: ± 25 mm
  • Working range Z-Axis: 1000 mm
  • Working range B-Axis: ± 90°
  • Working range C-Axis: 360°
