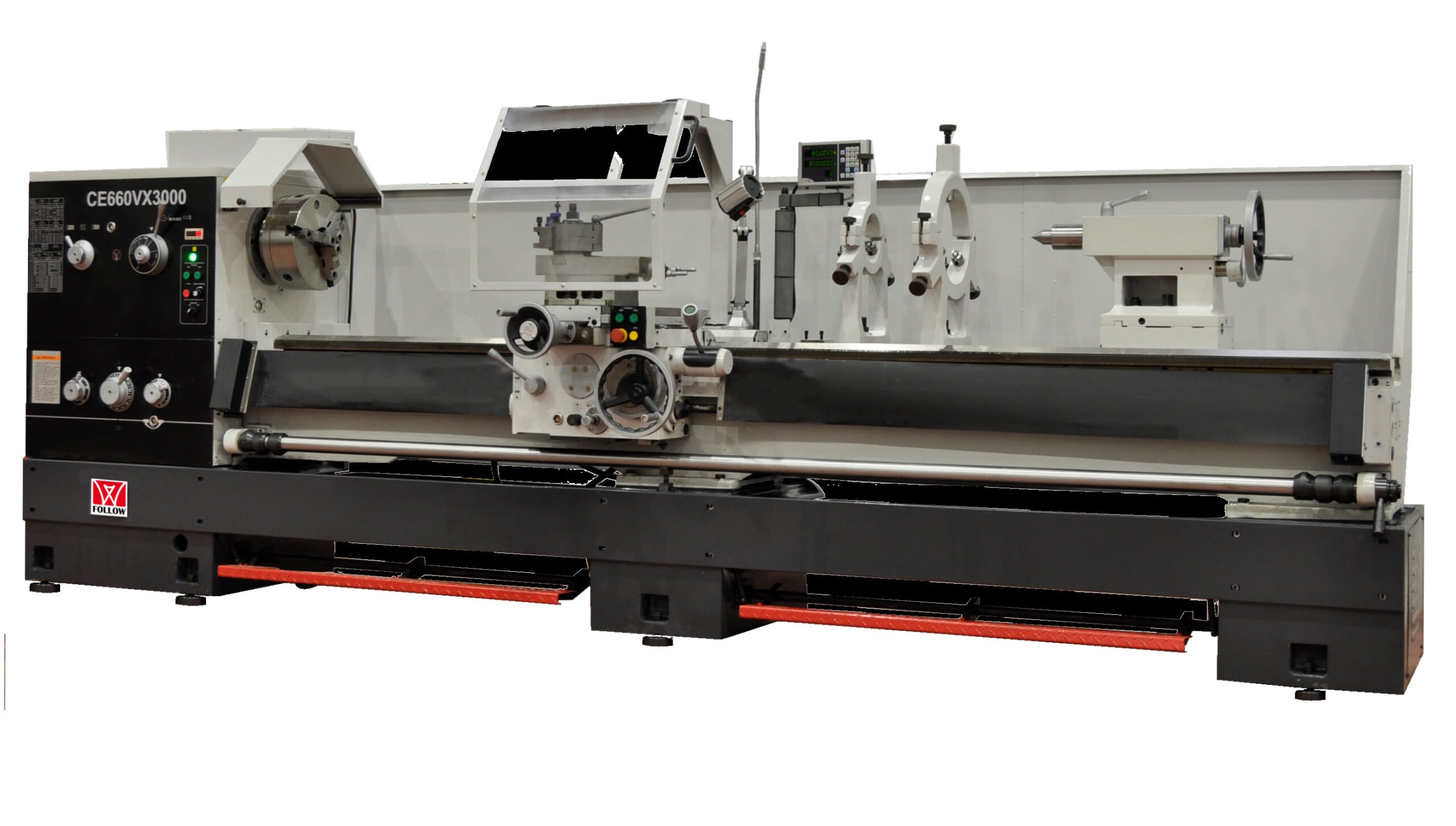

STANDARD EQUIPMENT
FAGOR DRO X, Z, HITACHI Inverter 15Kw, 3 jaw self-centering chuck Ø 315 mm, 4 independient jaw chuck Ø 400 mm, Faceplate Ø 630 mm, Stop bar, Rear chip guard, Steady rest, Follow rest, Quick change tool post with 4 tool holder, Monoblock cast bedplate, Taper turning attachment, Feeds selector, Longitudinal and cross rapid movements, Cooling equipment, Working lamp, CE-Certified
| Height of points | mm | 330 |
| Distance between points | mm | 3000 |
| Diameter over bed | mm | 660 |
| Diameter over gap | mm | 870 |
| Diameter over carriage | mm | 420 |
| Bed width | mm | 390 |
| Length of gap | mm | 240 |
| Main spindle hole | mm Ø | 105 |
| Spindle nose | CAMLOCK | 8 |
| Morse taper of main spindle | CM/MT | 0,055555556 |
| Spindle speed range | r.p.m | 23-1300 |
| Type and No. of speeds | Variable/ inverter | (3) 23-150/150433/433-1300 |
| Longitudinal feeds | mm/rev | 0,028 – 6,43 |
| Transverse feeds | mm/rev | 0,012 – 2,73 |
| Metric pitches | mm | 1 – 14MM / 22 |
| Whitworth pitches in threads per inch | t.p.i | 45350 |
| Modular pitches | m.p | 0,5-7 |
| Diametral pitch pitches | d.p | 56-4 |
| Master spindle pitch | Ø 40 x 12DP | |
| Cross slide travel | mm | 310 |
| Charriot travel | mm | 145 |
| Maximum tool dimensions | mm | 25×25 |
| Tailstock quill diameter | mm | 75 |
| Tailstock quill travel | mm | 150 |
| Tailstock Morse taper | CM/MT | 5 |
| Main engine power | Kw/Cv | 7,5/11 |
| Electrical voltage | V/Hz | 230-400/50Hz |
| Motor pump power | Kw/Cv | 0,09/0,12 |
| Dimensions (L x W x H) | mm | 4500x1100x1450 |
| Net weight | Kg | 4500 |
