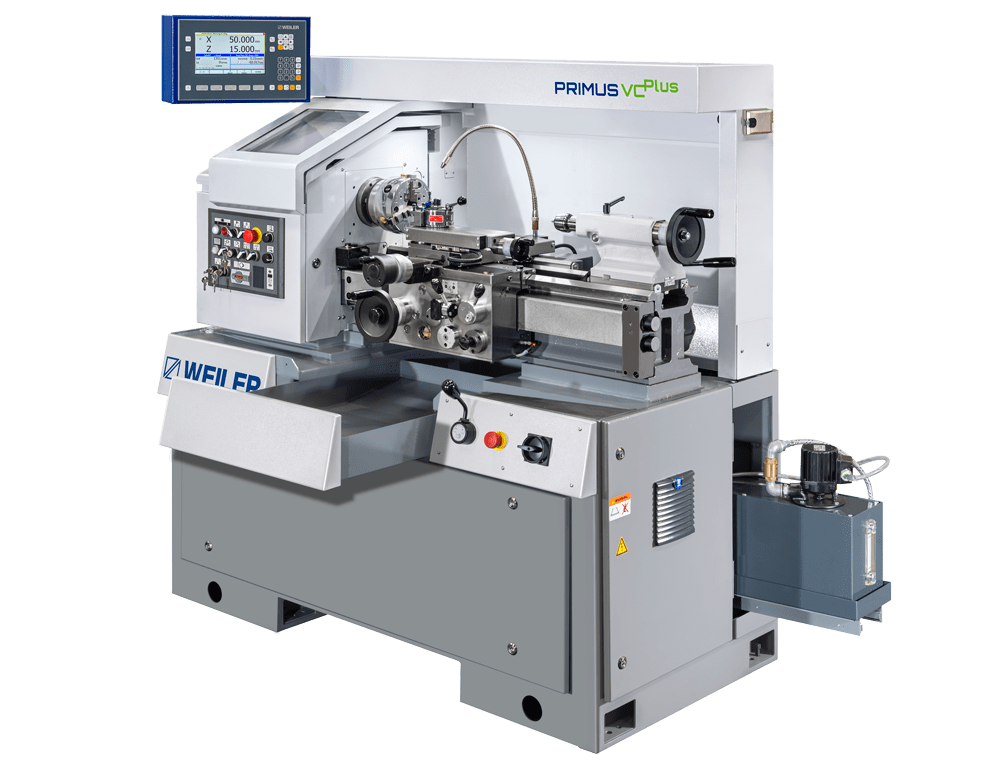

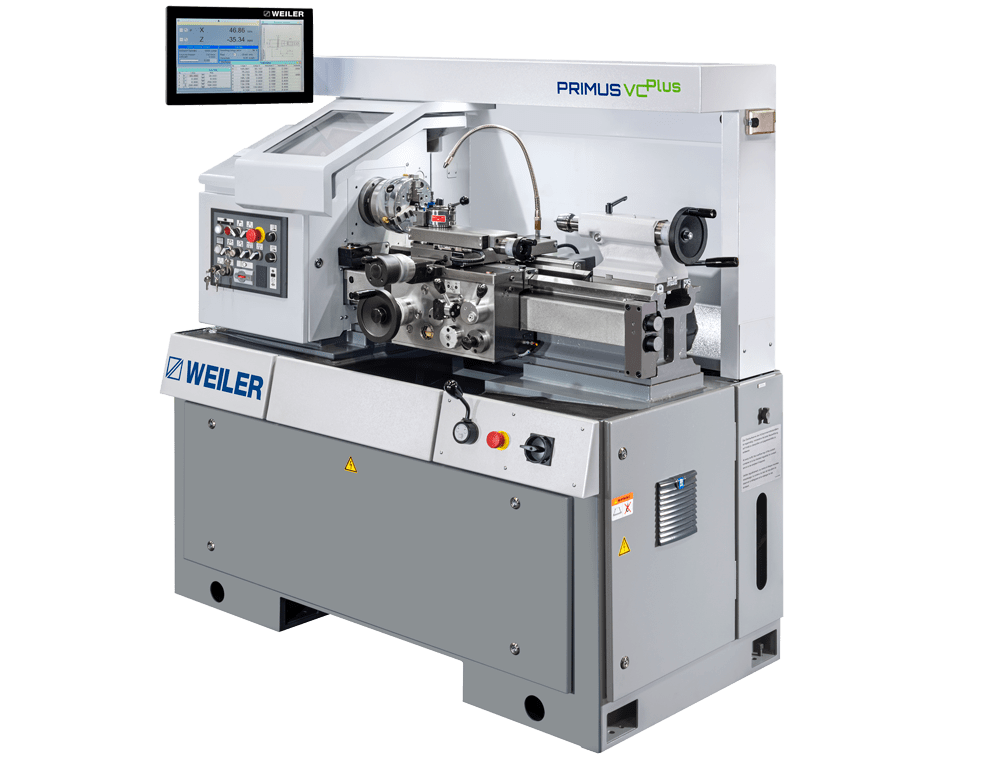

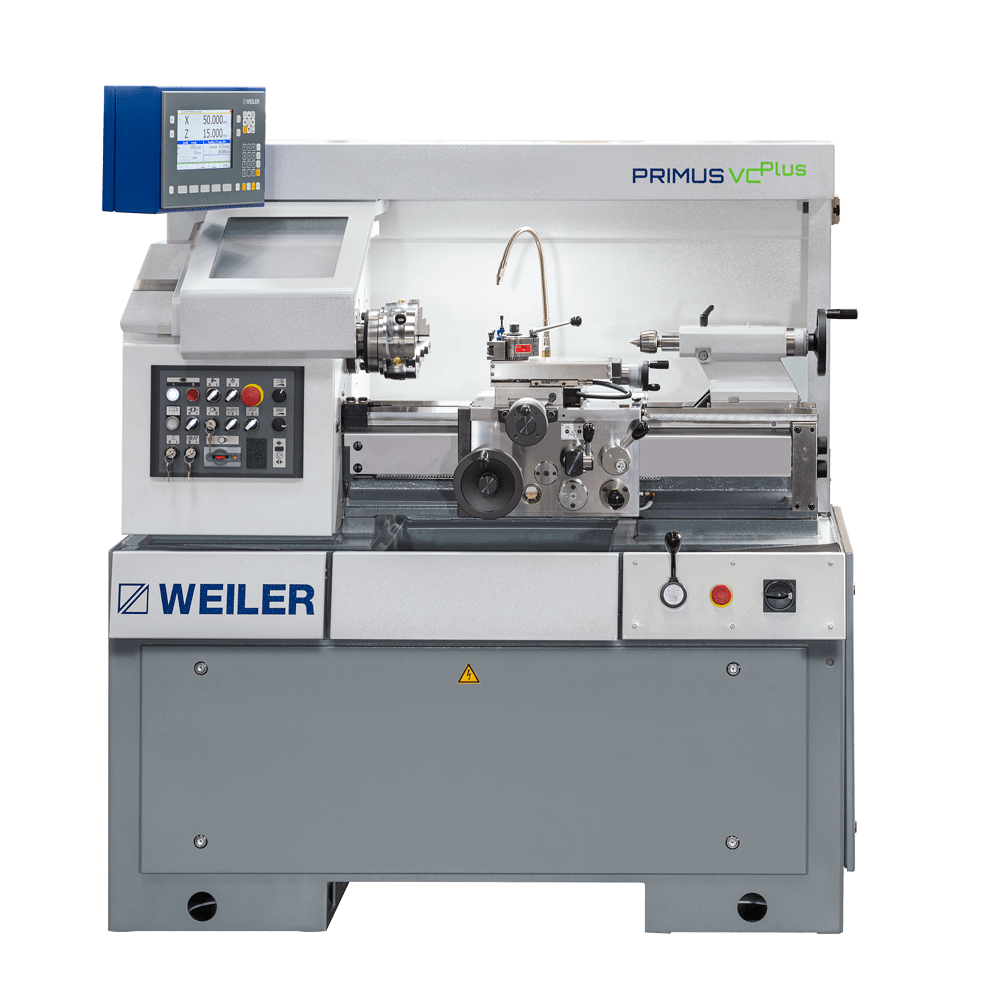

Primus VCPlus
Brings a new dimension to engine lathes.
High quality, energy-efficient, precise and universally usable in production, apprenticeships and vocational training. It impresses through:
- Sophisticated technology
- Extreme accuracy
- Durability
- User-friendly ergonomics
- Extremely small footprint
- and an extensive range of accessories.
The systematic and innovative further development of the proven Praktikant range is the cost-effective and intelligent solution for your everyday requirements.
Features
- Distance between centres 500 mm
- Centre height 140 mm
- Automatic handwheel release
- Lead screw and feed rod cover
- Holding brake
- Toolmakers accuracy in accordance with DIN 8605
- Innovative trend-setting machine concept
- Infinitely variable speed control with maintenance-free three-phase asynchronous motor
- Speed regulated frequency converter with actual value feedback
- Stepless turning speed optimisation during machining through a potentiometer (override)
- Stepless feed optimisation during machining through a potentiometer (override)
- Top cutting conditions for extremely fine surfaces
- VC Plus: innovative, user-friendly display and control electronics
- “e-TIM” energy conservation system minimises power consumption
- Optional “e-LISSY“ teaching concept enables the machine to be individually adapted
- to the training level of each operator through coded chips
- Extensive and practice-oriented accessories
- LED machine lights
Technical Data
| Working Range | |
| Centre height | 140 mm |
| Swing over bed | 280 mm |
| Swing over cross slide | 150 mm |
| Distance between centres | 500 mm |
| LATHE SPINDLE | |
| Spindle nose acc. to DIN 55027 (DIN ISO 702-3) | size 5 |
| Spindle bore | 43 mm |
| Spindle diameter in front bearing | 70 mm |
| MAIN DRIVE | |
| Drive power 60% / 100% duty cycle | – / 5,5 kW |
| Speed range | 25 – 5.000 rpm |
| Number of speeds | stepless |
| FEED RANGE | |
| Number of feeds | stepless |
| Longitudinal | 0,01 – 6 mm/turn |
| Transverse | 0,003 – 2 mm/turn |
| THREAD CUTTING RANGE | |
| Metric threads | 0,1 – 20 mm |
| TAILSTOCK | |
| Quill diameter | 40 mm |
| Quill travel | 85 mm |
| Quill taper according to DIN 228 | MK 3 |
| Acceptance Accuracy | DIN 8605 |
